Batch Process Tanks
For Multiple-Component Machine Processing and Hand-Batching

2-GALLON
5-GALLON
10-GALLON
15 GALLON
30-GALLON
60-GALLON
75-GALLON
100-GALLON
250-GALLON
2-GALLON

Click to enlarge

Mechanical Specifications

Actual Tank Volume (to the lip of the tank):
2.7 Gallons

Vacuum Rating (cold-rolled steel or stainless steel tank):
Full Vac. @ 650ºF

Pressure Rating (cold-rolled steel or stainless steel tank):
110 PSI. @ 650ºF

Over-Pressure Relief Valve (preset at 70 PSI):
Standard

Fill Port (inside diameter):
Available

Floor Space Required:
16 in. x 16 in.

Tank Diameter:
9 inches

Overall Height (with long legs – to the top of the agitator):
45 inches

Tank Height (with long legs – to the lip of the tank):
25 inches

Output Valve Height (from floor – with long legs):
10 inches

Output Valve – Standard Ball Valve Sizes:
3/4″ NPT



Electrical Specifications

Heaters – 230V, 50/60 Hz (440V Available):
Rated @ 600W

Control Circuit – 115V, 50/60 Hz:
Standard

Digital Readout Controller 1/16 DIN, PID, Auto Tune:
285ºF Max.

Over-Temperature Alarm (user presettable):
Standard

Over-Temperature Thermostat (factory preset):
Standard

Over-Temperature Cut-Out (fusable link):
Standard

Type-J Thermocouple Sensor – Thru the Lid (+ or – 1ºF):
Standard

Request A Quote
5-GALLON

Click to enlarge

Mechanical Specifications

Actual Tank Volume (to the lip of the tank):
8.4 Gallons

Vacuum Rating (cold-rolled steel or stainless steel tank):
Full Vac. @ 650ºF

Pressure Rating (cold-rolled steel or stainless steel tank):
110 PSI. @ 650ºF

Over-Pressure Relief Valve (preset at 70 PSI):
Standard

Fill Port (inside diameter):
3-1/2″

Floor Space Required:
2 ft. x 2 ft.

Tank Diameter:
14 inches

Overall Height (with long legs – to the top of the agitator):
51 inches

Tank Height (with long legs – to the lip of the tank):
27 inches

Output Valve Height (from floor – with long legs):
10 inches

Output Valve – Standard Ball Valve Sizes:
1″ NPT



Electrical Specifications

Heaters – 230V, 50/60 Hz (440V Available):
Rated @ 2100W

Control Circuit – 115V, 50/60 Hz:
Standard

Digital Readout Controller 1/16 DIN, PID, Auto Tune:
285ºF Max.

Over-Temperature Alarm (user presettable):
Standard

Over-Temperature Thermostat (factory preset):
Standard

Over-Temperature Cut-Out (fusable link):
Standard

Type-J Thermocouple Sensor – Thru the Lid (+ or – 1ºF):

Standard

Request a Quote
10-GALLON

Click to enlarge

Mechanical Specifications

Actual Tank Volume (to the lip of the tank):
12.1 Gallons

Vacuum Rating (cold-rolled steel or stainless steel tank):
Full Vac. @ 650ºF

Pressure Rating (cold-rolled steel or stainless steel tank):
110 PSI. @ 650ºF

Over-Pressure Relief Valve (preset at 70 PSI):
Standard

Fill Port (inside diameter):
3-1/2″

Floor Space Required:
2 ft. x 2 ft.

Tank Diameter:
14 inches

Overall Height (with long legs – to the top of the agitator):
57 inches

Tank Height (with long legs – to the lip of the tank):
33 inches

Output Valve Height (from floor – with long legs):
10 inches

Output Valve – Standard Ball Valve Sizes:
1″ NPT



Electrical Specifications

Heaters – 230V, 50/60 Hz (440V Available):
Rated @ 2300W

Control Circuit – 115V, 50/60 Hz:
Standard

Digital Readout Controller 1/16 DIN, PID, Auto Tune:
285ºF Max.

Over-Temperature Alarm (user presettable):
Standard

Over-Temperature Thermostat (factory preset):
Standard

Over-Temperature Cut-Out (fusable link):
Standard

Type-J Thermocouple Sensor – Thru the Lid (+ or – 1ºF):

Standard

Request a Quote
15 GALLON

Click to enlarge

Mechanical Specifications

Actual Tank Volume (to the lip of the tank):
18.8 Gallons

Vacuum Rating (cold-rolled steel or stainless steel tank):
Full Vac. @ 650ºF

Pressure Rating (cold-rolled steel or stainless steel tank):
110 PSI. @ 650ºF

Over-Pressure Relief Valve (preset at 70 PSI):
Standard

Fill Port (inside diameter):
3-1/2″

Floor Space Required:
2 ft. x 2 ft.

Tank Diameter:
14 inches

Overall Height (with long legs – to the top of the agitator):
67 inches

Tank Height (with long legs – to the lip of the tank):
42 inches

Output Valve Height (from floor – with long legs):
10 inches

Output Valve – Standard Ball Valve Sizes:
1″ NPT



Electrical Specifications

Heaters – 230V, 50/60 Hz (440V Available):
Rated @ 2300W

Control Circuit – 115V, 50/60 Hz:
Standard

Digital Readout Controller 1/16 DIN, PID, Auto Tune:
285ºF Max.

Over-Temperature Alarm (user presettable):
Standard

Over-Temperature Thermostat (factory preset):
Standard

Over-Temperature Cut-Out (fusable link):
Standard

Type-J Thermocouple Sensor – Thru the Lid (+ or – 1ºF):

Standard

Request a Quote
30-GALLON

Click to enlarge

Mechanical Specifications

Actual Tank Volume (to the lip of the tank):
34.6 Gallons

Vacuum Rating (cold-rolled steel or stainless steel tank):
Full Vac. @ 650ºF

Pressure Rating (cold-rolled steel or stainless steel tank):
110 PSI. @ 650ºF

Over-Pressure Relief Valve (preset at 70 PSI):
Standard

Fill Port (inside diameter):
3-1/2″

Floor Space Required:
3 ft. x 3 ft.

Tank Diameter:
24 inches

Overall Height (with long legs – to the top of the agitator):
67 inches

Tank Height (with long legs – to the lip of the tank):
38 inches

Output Valve Height (from floor – with long legs):
15 inches

Output Valve – Standard Ball Valve Sizes:
1″, 1-1/2″, 2″ NPT



Electrical Specifications

Heaters – 230V, 50/60 Hz (440V Available):
Rated @ 4400W

Control Circuit – 115V, 50/60 Hz:
Standard

Digital Readout Controller 1/16 DIN, PID, Auto Tune:
285ºF Max.

Over-Temperature Alarm (user presettable):
Standard

Over-Temperature Thermostat (factory preset):
Standard

Over-Temperature Cut-Out (fusable link):
Standard

Type-J Thermocouple Sensor – Thru the Lid (+ or – 1ºF):
Standard

Request a Quote

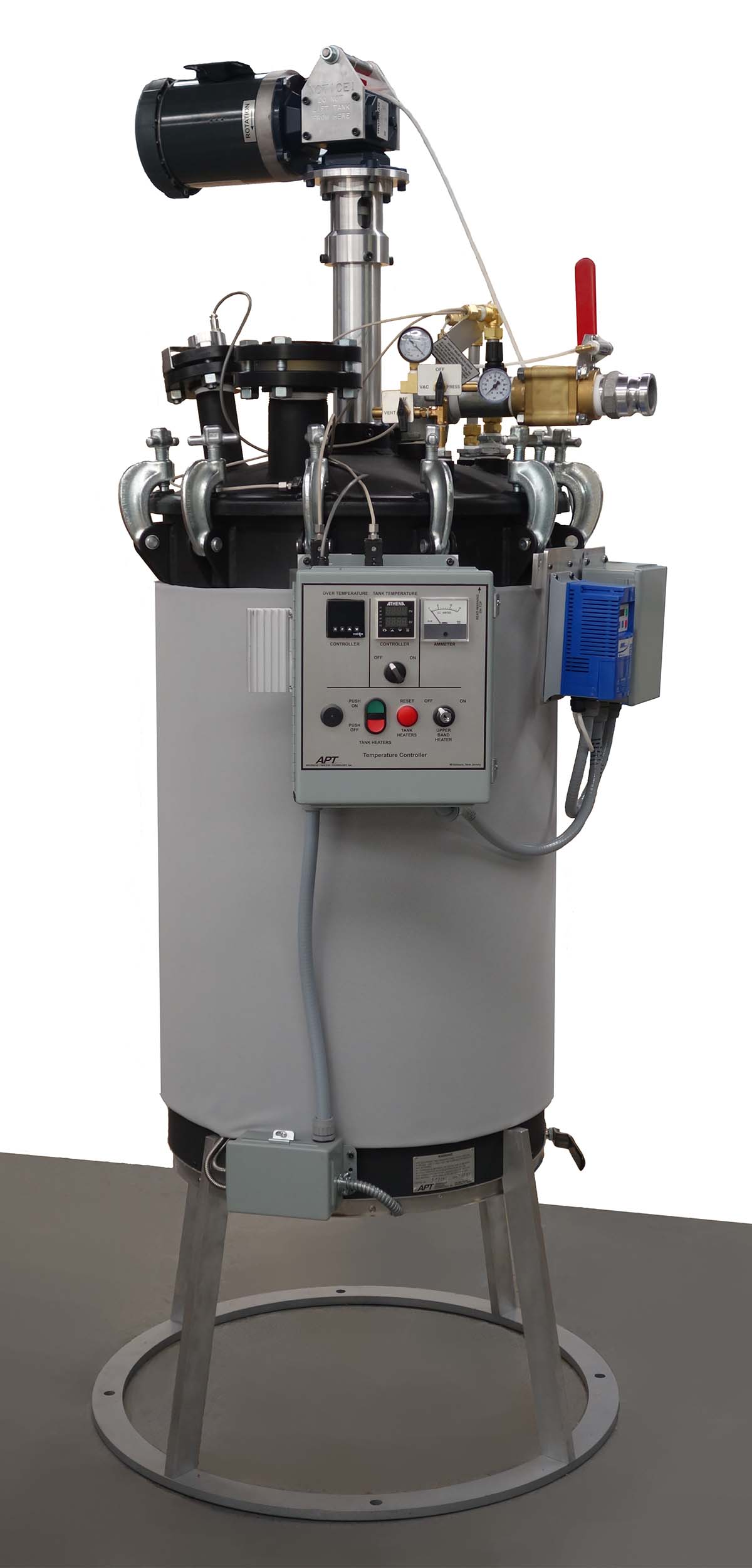

60-GALLON

Click to enlarge

Mechanical Specifications

Actual Tank Volume (to the lip of the tank):
63.8 Gallons

Vacuum Rating (cold-rolled steel or stainless steel tank):
Full Vac. @ 650ºF

Pressure Rating (cold-rolled steel or stainless steel tank):
110 PSI. @ 650ºF

Over-Pressure Relief Valve (preset at 70 PSI):
Standard

Fill Port (inside diameter):
3-1/2″

Floor Space Required:
4 ft. x 4 ft.

Tank Diameter:
24 inches

Overall Height (with long legs – to the top of the agitator):
82 inches

Tank Height (with long legs – to the lip of the tank):
54 inches

Output Valve Height (from floor – with long legs):
15 inches

Output Valve – Standard Ball Valve Sizes:
1″, 1-1/2″, 2″ NPT



Electrical Specifications

Heaters – 230V, 50/60 Hz (440V Available):
Rated @ 6200W

Control Circuit – 115V, 50/60 Hz:
Standard

Digital Readout Controller 1/16 DIN, PID, Auto Tune:
285ºF Max.

Over-Temperature Alarm (user presettable):
Standard

Over-Temperature Thermostat (factory preset):
Standard

Over-Temperature Cut-Out (fusable link):
Standard

Type-J Thermocouple Sensor – Thru the Lid (+ or – 1ºF):
Standard

Request a Quote
75-GALLON

Click to enlarge

Mechanical Specifications

Actual Tank Volume (to the lip of the tank):
78.8 Gallons

Vacuum Rating (cold-rolled steel or stainless steel tank):
Full Vac. @ 650ºF

Pressure Rating (cold-rolled steel or stainless steel tank):
110 PSI. @ 650ºF

Over-Pressure Relief Valve (preset at 70 PSI):
Standard

Fill Port (inside diameter):
3-1/2″

Floor Space Required:
4 ft. x 4 ft.

Tank Diameter:
24 inches

Overall Height (with long legs – to the top of the agitator):
89 inches

Tank Height (with long legs – to the lip of the tank):
61 inches

Output Valve Height (from floor – with long legs):
16 inches

Output Valve – Standard Ball Valve Sizes:
1″, 1-1/2″, 2″ NPT



Electrical Specifications

Heaters – 230V, 50/60 Hz (440V Available):
Rated @ 6200W

Control Circuit – 115V, 50/60 Hz:
Standard

Digital Readout Controller 1/16 DIN, PID, Auto Tune:
285ºF Max.

Over-Temperature Alarm (user presettable):
Standard

Over-Temperature Thermostat (factory preset):
Standard

Over-Temperature Cut-Out (fusable link):
Standard

Type-J Thermocouple Sensor – Thru the Lid (+ or – 1ºF):
Standard

Request a Quote
100-GALLON

Click to enlarge

Mechanical Specifications

Actual Tank Volume (to the lip of the tank):
102.3 Gallons

Vacuum Rating (cold-rolled steel or stainless steel tank):
Full Vac. @ 650ºF

Pressure Rating (cold-rolled steel or stainless steel tank):
110 PSI. @ 650ºF

Over-Pressure Relief Valve (preset at 70 PSI):
Standard

Fill Port (inside diameter):
3-1/2″

Floor Space Required:
4 ft. x 4 ft.

Tank Diameter:
24 inches

Overall Height (with long legs – to the top of the agitator):
102 inches

Tank Height (with long legs – to the lip of the tank):
70 inches

Output Valve Height (from floor – with long legs):
16 inches

Output Valve – Standard Ball Valve Sizes:
1″, 1-1/2″, 2″ NPT



Electrical Specifications

Heaters – 230V, 50/60 Hz (440V Available):
Rated @ 6200W

Control Circuit – 115V, 50/60 Hz:
Standard

Digital Readout Controller 1/16 DIN, PID, Auto Tune:
285ºF Max.

Over-Temperature Alarm (user presettable):
Standard

Over-Temperature Thermostat (factory preset):
Standard

Over-Temperature Cut-Out (fusable link):
Standard

Type-J Thermocouple Sensor – Thru the Lid (+ or – 1ºF):
Standard

Request a Quote
250-GALLON

Click to enlarge

Mechanical Specifications

Actual Tank Volume (to the lip of the tank):
265 Gallons

Vacuum Rating (cold-rolled steel or stainless steel tank):
Full Vac. @ 650ºF

Pressure Rating (cold-rolled steel or stainless steel tank):
110 PSI. @ 650ºF

Over-Pressure Relief Valve (preset at 70 PSI):
Standard

Fill Port (inside diameter):
3-1/2″

Floor Space Required:
5 ft. x 5 ft.

Tank Diameter:
36 inches

Overall Height (with long legs – to the top of the agitator):
132 inches

Tank Height (with long legs – to the lip of the tank):
104 inches

Output Valve Height (from floor – with long legs):
20 inches

Output Valve – Standard Ball Valve Sizes:
1″, 1-1/2″, 2″ NPT



Electrical Specifications

Heaters – 230V, 50/60 Hz (440V Available):
Rated @ 15100W

Control Circuit – 115V, 50/60 Hz:
Standard

Digital Readout Controller 1/16 DIN, PID, Auto Tune:
285ºF Max.

Over-Temperature Alarm (user presettable):
Standard

Over-Temperature Thermostat (factory preset):
Standard

Over-Temperature Cut-Out (fusable link):
Standard

Type-J Thermocouple Sensor – Thru the Lid (+ or – 1ºF):
Standard

Request a Quote

Products

  • SRD Series
  • SRD i Series
  • ECS-Series
  • Flying Wedge
  • Tanks
  • Quick Ship Tanks

AVAILABLE CUSTOMER SERVICE

We are committed to responsive after-sale service and technical support.

After delivery, we check the installation.

Assist with running your SRD, ECS or HT-Series system with your material.

Your designated machine-operators can be trained.

SITEMAP

  • HOME
  • CHOOSE YOUR RESIN PROCESS
  • PRODUCTS
  • SUPPORT
  • CONTACT

Contact Us

732.356.4438

732.356.4005

200 Egel Avenue
Middlesex, New Jersey 08846
© 2015 All rights reserved.
